We are a professional PE carbon corrugated pipe manufacturer, providing high-quality products with CE and ISO certification. Our products include black and gray carbon corrugated pipes, with nominal diameters ranging from 50mm to 200mm, and wall thicknesses adjustable from 2.0mm to 8.0mm. Featuring insulation, corrosion resistance, aging resistance and high flexibility, our carbon corrugated pipes are widely used in power grid transformation, municipal construction, communication cable laying and other projects. We support custom sizes, colors and lengths to meet the diverse needs of overseas customers. Welcome to contact us for wholesale and customization services.
High-performance PE carbon corrugated pipe for underground cable protection. Our products are light in weight, easy to install, and can withstand harsh underground environments. Suitable for power, communication, municipal and other engineering fields. As a reliable supplier, we provide one-stop solutions from product customization to after-sales service. Contact us now to get the latest quotation and product catalog.
Share
Describe

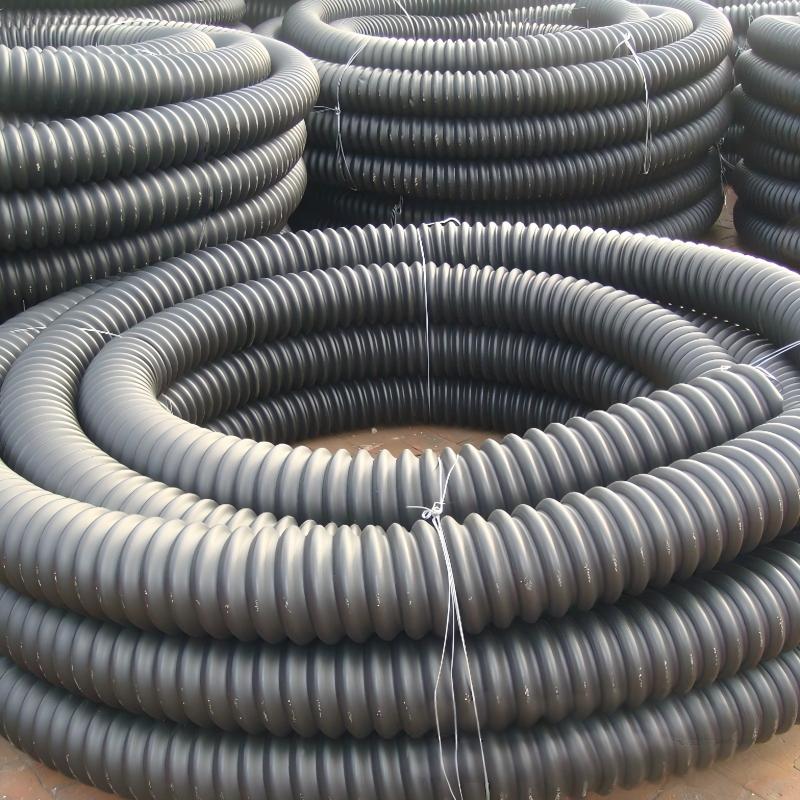

Our PE Carbon Corrugated Pipe (also known as Carbon Threaded Pipe, Power Threading Corrugated Pipe) is a new type of threading pipe made of high-density polyethylene (HDPE) as the main raw material, added with carbon composite materials. Its threaded structure combines high flexibility and pressure resistance, which can be bent freely to adapt to complex underground wiring environments. At the same time, it has the characteristics of insulation, corrosion resistance, aging resistance and light weight. It can be constructed quickly without a lot of earthwork excavation. It is an ideal choice for protecting cables in power, communication, municipal and other projects.
We adhere to strict quality control standards, and all products meet international certification requirements (such as ISO, CE), which can perfectly adapt to the construction needs of overseas markets such as Europe, America, Southeast Asia. Whether it is urban power grid transformation, municipal road construction or communication optical cable laying, our PE carbon corrugated pipe can provide stable and reliable cable protection solutions.
|
Parameter Category |
Specification Options |
Description |
|
Nominal Diameter |
50mm, 65mm, 80mm, 100mm, 125mm, 150mm, 175mm, 200mm |
Common engineering specifications, support custom special sizes |
|
Wall Thickness (壁厚) |
2.0mm-8.0mm |
Adjustable according to pressure resistance requirements |
|
Color (颜色) |
Black, Gray |
Support custom other colors |
|
Length (长度) |
6m/root, 100m/roll |
Can be cut on demand |
|
Ring Stiffness (环刚度) |
≥8kN/m², ≥10kN/m², ≥12.5kN/m² |
Meet the pressure resistance requirements of different burial depths |
|
Material (材质) |
HDPE + Carbon Composite Material |
Insulation, corrosion resistance, aging resistance |
|
Certification (认证) |
ISO, CE |
Meet international market access standards |
